Image Virtualization

Image virtualization, map virtualization, raster virtualization or even multi-resolution are the names given by Dinamica EGO 4 to the ability of manipulating images with different extents, resolutions or number of lines and columns.

Previous versions of Dinamica required all maps used as inputs of a model to have the same number of lines and columns (and by consequence the same extents). Dinamica EGO 4 changed this behavior by enforcing the proper use of map projections (all maps used as part of a model must share the same projection) and registration coordinates.

Using only input maps with the same extents and resolution always disables virtualization and the result produced by models with such input are exactly the same when they are executed by Dinamica EGO version 3 or 4.

Map computations in Dinamica since version 4 uses image virtualization to extent and modify at runtime the image dimensions making sure that all images presented to any operator have the same number of lines and columns. This allows images used by any computation to have different dimensions while retaining the ability to run the calculation in parallel at high speed.

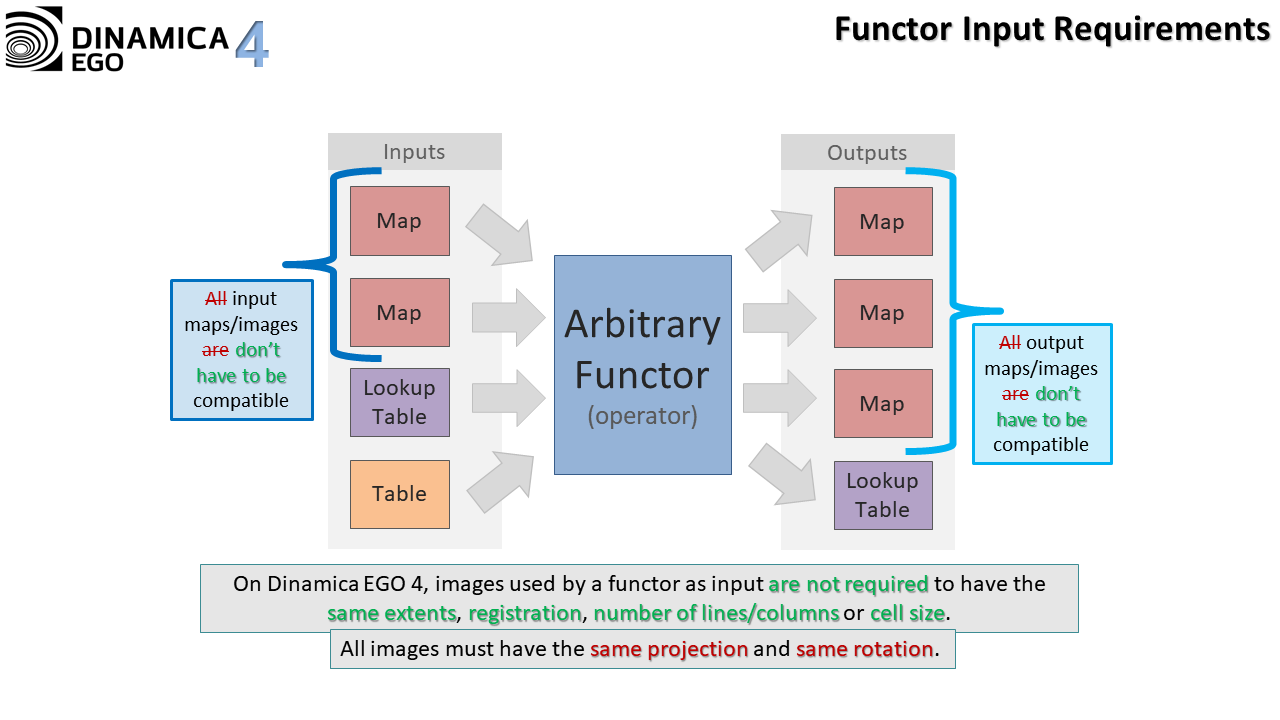

Typically, the only requirement when using virtualization is that all images must share the same projection and same rotation, although different models can use different projections and rotations¹⁾. It is also possible to use maps with different projections as part of a same model, as long as images with different projections are not given as inputs to the same functors at the same time.

To facilitate the re-projection of maps ensuring that the projections are the same, a convenient wrapper around the gdal_warp and gdal_translate called Transform Map is provided. This functor simply runs those GDAL utilities distributed with Dinamica EGO 4.

All analysis concerning projections and what they represent are performing internally using GDAL. However, the map virtualization itself is performing independently by Dinamica.

Versions of Dinamica prior to version 4 could only manipulate maps with the same number of lines and columns. Additional information such as registrations coordinates, resolution etc were not treated uniformly by all functors with many of them simply ignoring this information in the input maps.

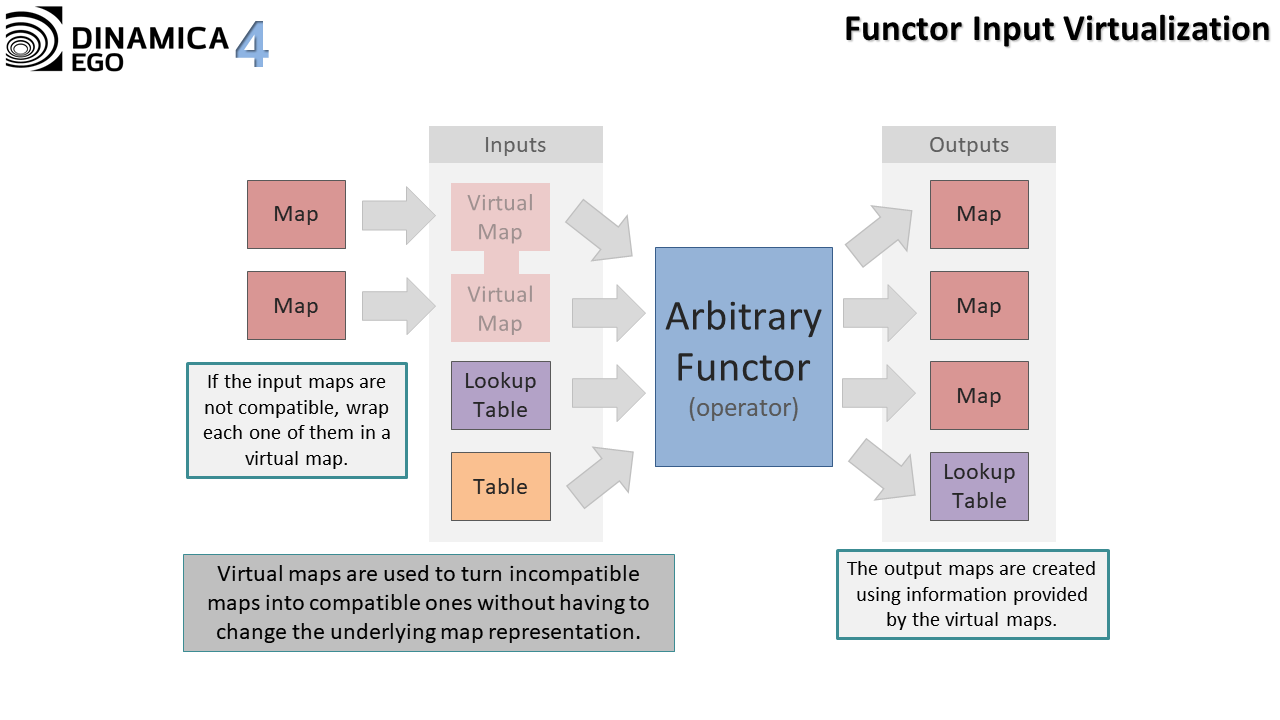

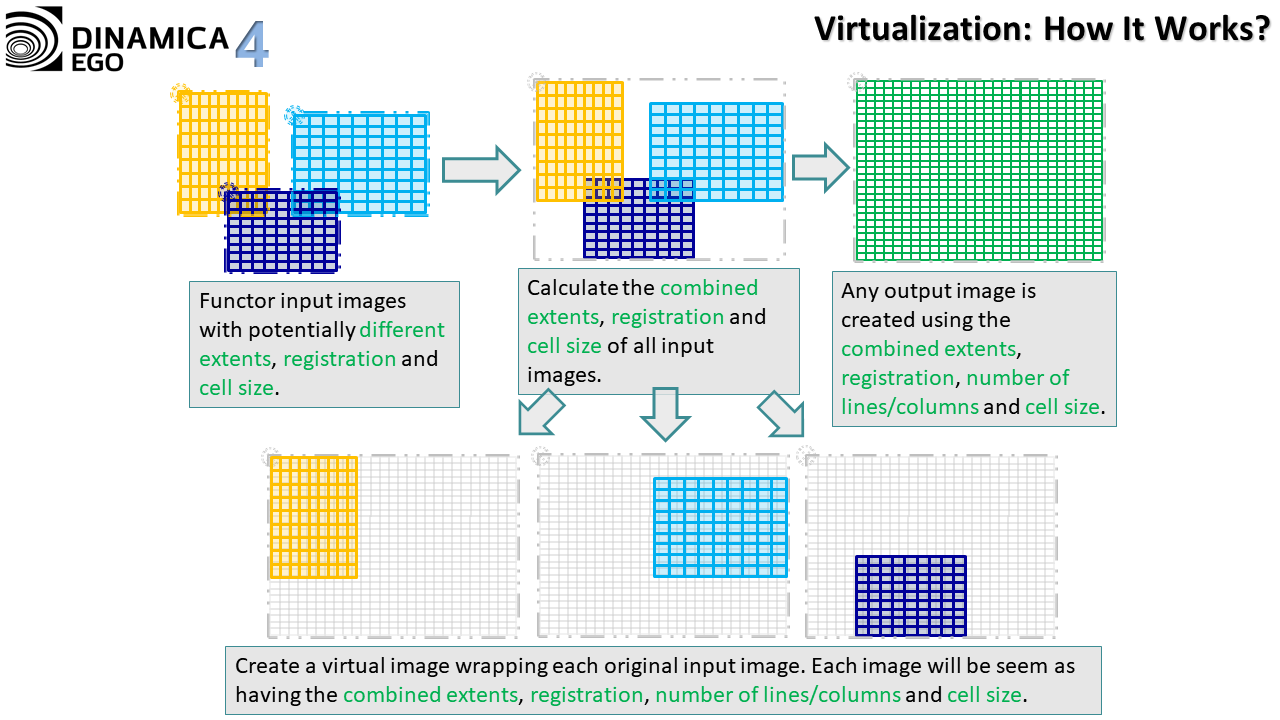

Version 4 handles map extents and resolution in a very uniform way. Basically, when a set of maps is given to a functor, they are first analysed to determine what is the minimum extents and resolution that an input map should have to cover all necessary cells the best possible way. Then, each input map is wrapped around a virtual version of itself with this new resolution and extents. The functor receives those virtual versions and use them to perform the computation. By using this virtualization process, version 4 ensures that all maps given to a functor have the same number of lines and columns, resolution, and extents. It is also worth noting that a same map might have different virtual representation depending on the original set of maps given to a particular functor.

The virtual resolution of the resulting virtual maps is always the smallest resolution from all maps involved in the visualization process. This minimizes the number of cells that have to be analyzed when deciding to what original cell a virtual cell from the virtual map corresponds.

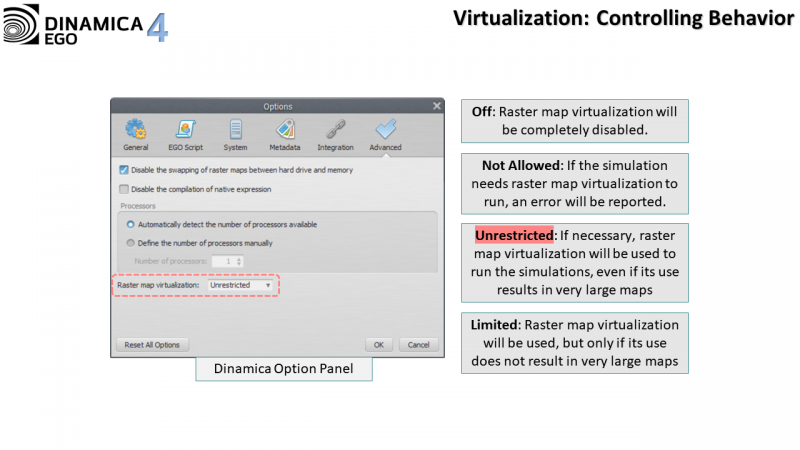

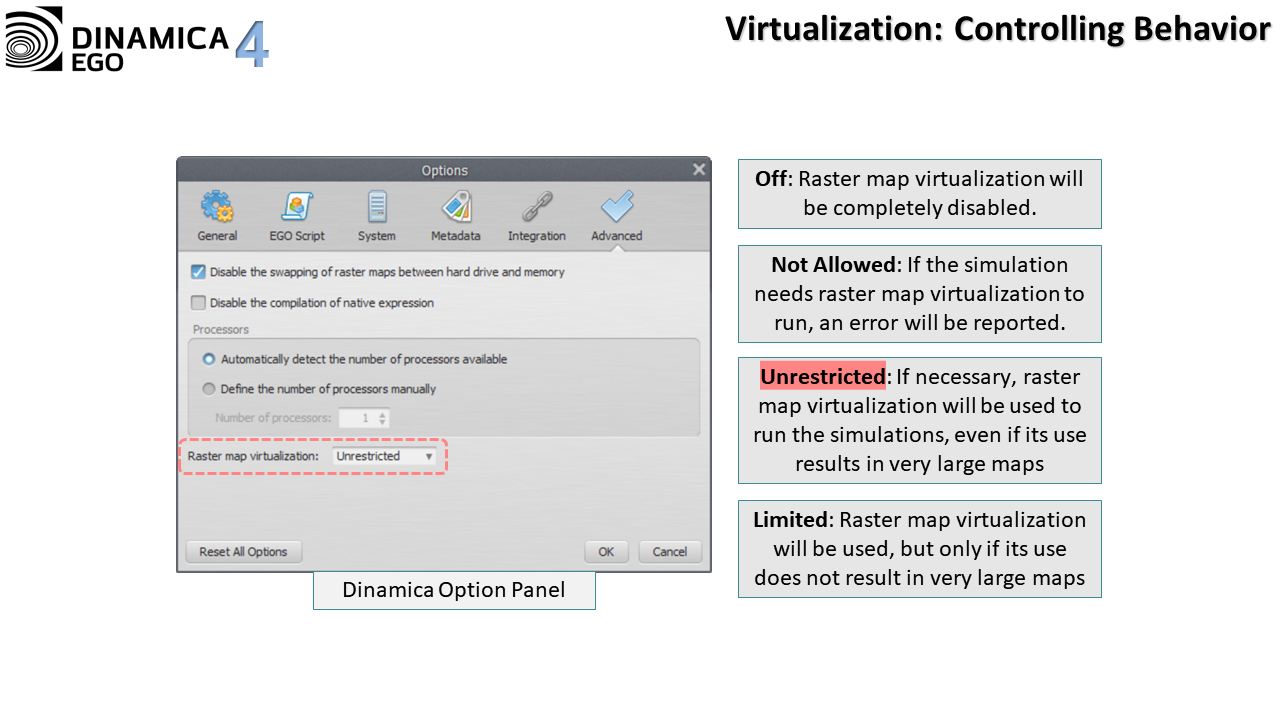

The virtualization process is mostly automatic and happens by simply passing maps with different extents and resolutions to any functor. However, the user can limit the virtualzation process by checking the options available on “Tools → Options | Advanced | Virtualization”. Basically, the user can choose one of the following options.

• Off: Raster map virtualization will be completely disabled. This is equivalent of running a simulation using a previous version of Dinamica EGO. If the maps used by the functors are incompatible, the execution might or might nor work, depending on how the functor behaves internally.
• Not Allowed: If the simulation needs raster map virtualization to run, an error will be reported. Otherwise, the simulation will run as if using a previous version of Dinamica EGO.
• Unrestricted: If necessary, raster map virtualization will be used to run the simulations, even if its use results in very large maps compared to the dimensions of the input maps.
• Limited: Raster map virtualization will be used, but only if its use does not result in very large maps compared to the dimensions of the input maps. Otherwise, an error will be reported.

The selected corresponding option is also presented in the status bar. Double clicking the corresponding label in the status bar brings the relevant tab from the “Options” dialog, where the “Raster map virtualization” option can be edited.

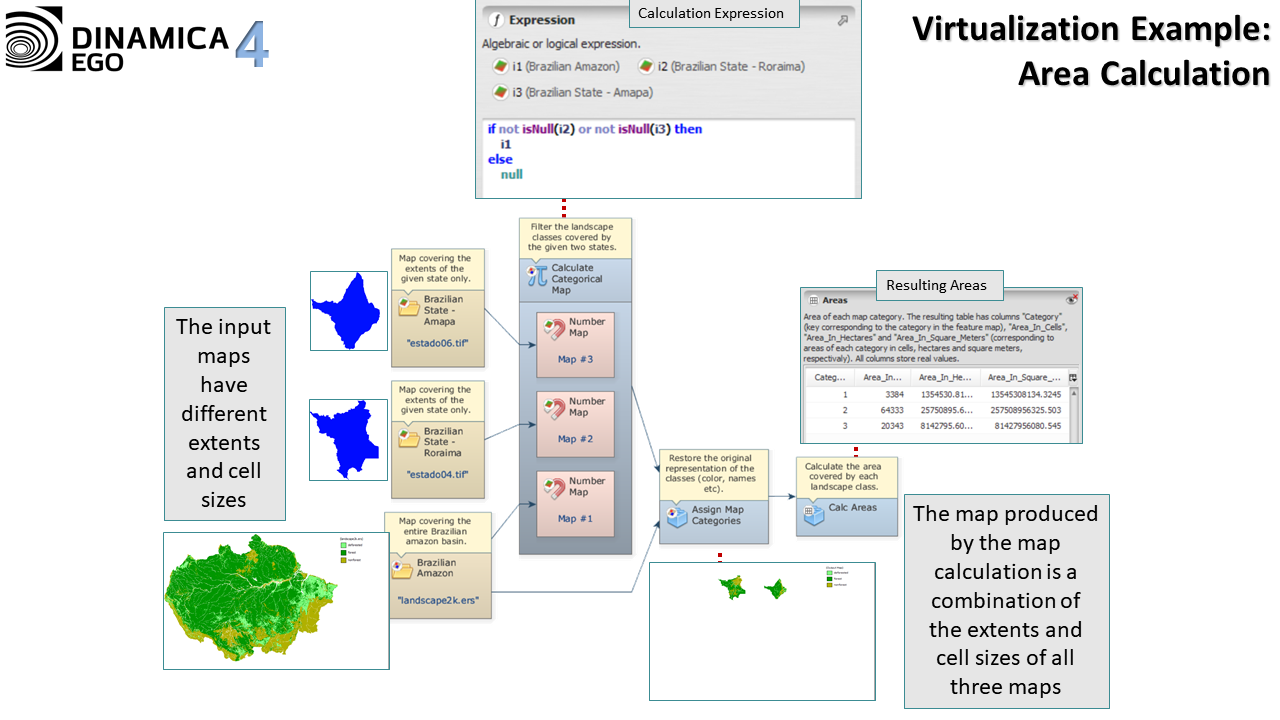

The following example shows how virtualization works in practice:

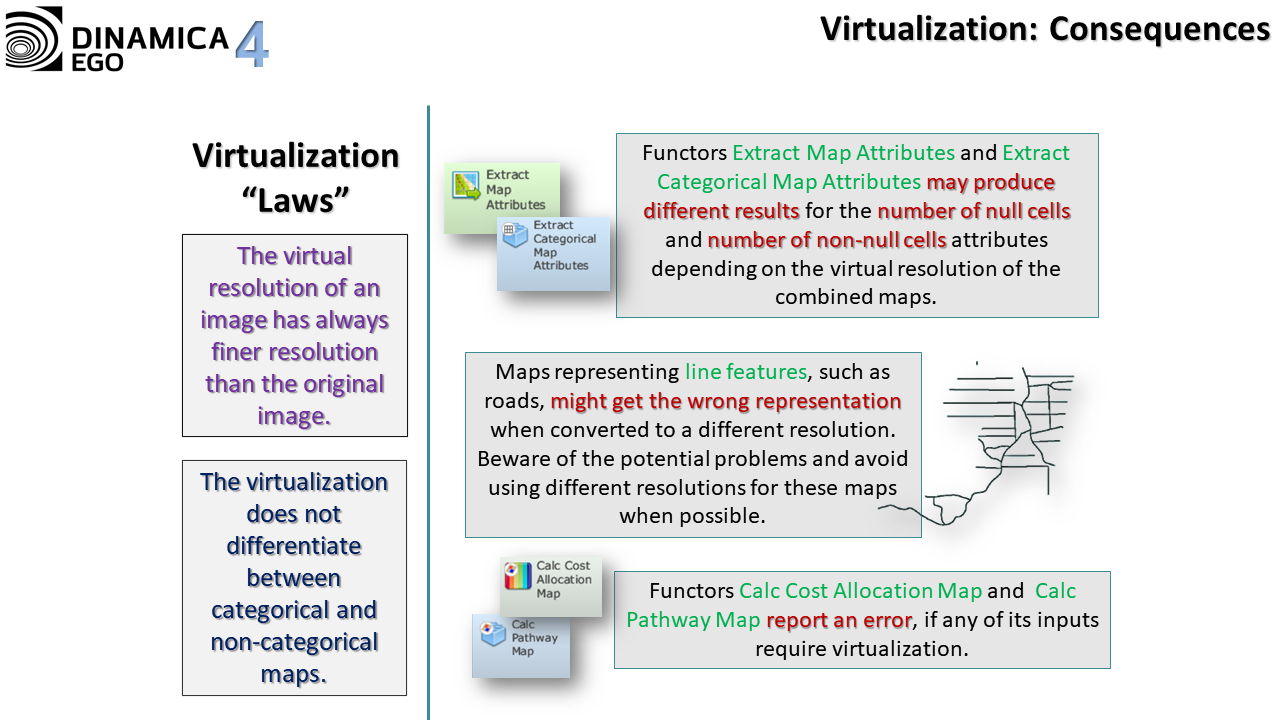

Functors Calc Cost Allocation Map and Calc Pathway Map will always report an error if virtualization is required to make their input maps compatible. The reason behind this behavior is simple: virtualization often replicates a cell turning it into many cells with the same value when the resolution of a map increases, but these functors need the input cost map not to have local minimums. Thus, replicating a cell would create local minimum and that would prevent these functors from working properly.

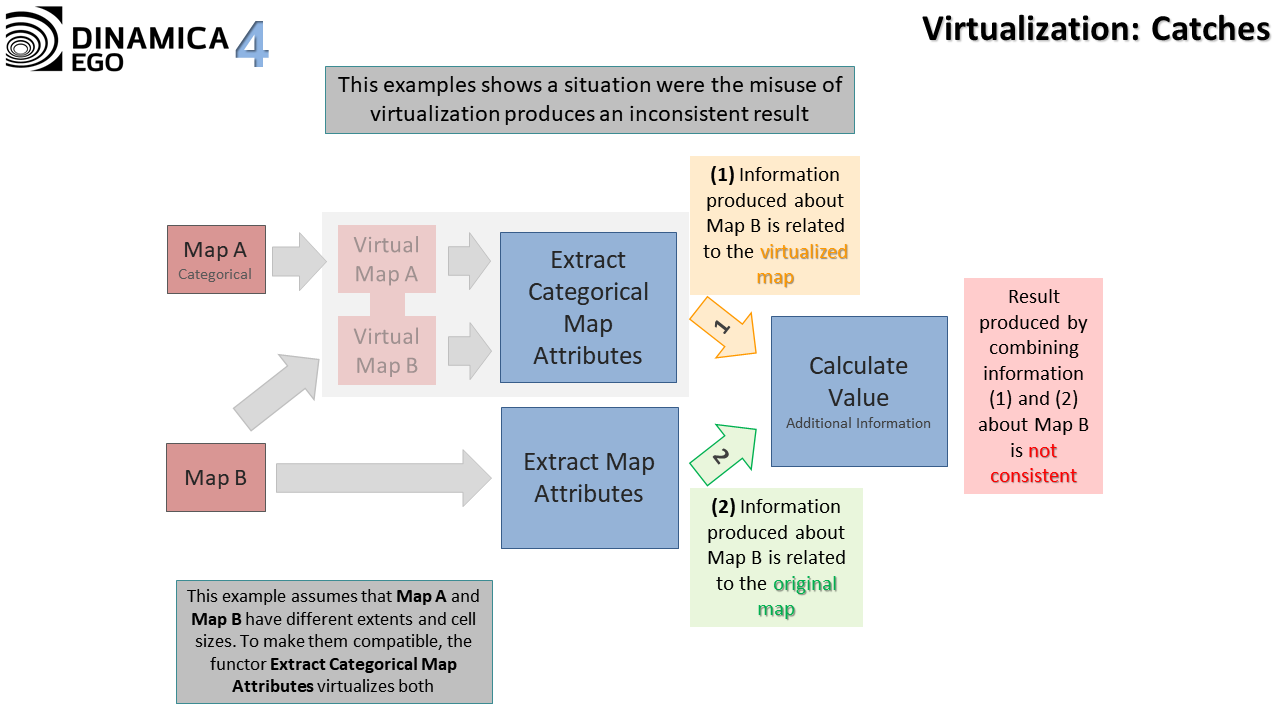

Some other functor such as Extract Map Attributes and Extract Categorical Map Attributes can produce result that is different from the result that would be obtained using the original versions of the map. Typically, this is not a problem if the information produced by these functors is used with care. For example, it is safe to extract the number of non-null cells and multiply by the cell resolution provided that the values are coming from the same Extract Map Attributes or the same Extract Categorical Map Attributes. This is possible because map virtualization changes the cell resolution and the number of non-null cells of a map simultaneously, making the multiplication result consistent with the one that would be obtained by using the original version of the map. The same is true for all other attributes.

It is also worth noting that certain maps should not be mixed with other maps with different extents/resolutions such as maps representing line features specially roads. Some algorithms might assume that a road is always only one cell wide and the virtualization process might produce a map where this assumption does not hold.

It is also worth noting that certain maps should not be mixed with other maps with different extents/resolutions such as maps representing line features, specially roads. Some algorithms might assume that a road is always one cell wide and the virtualization process might produce a map where this assumption does not hold.
